Alloy+ Flux

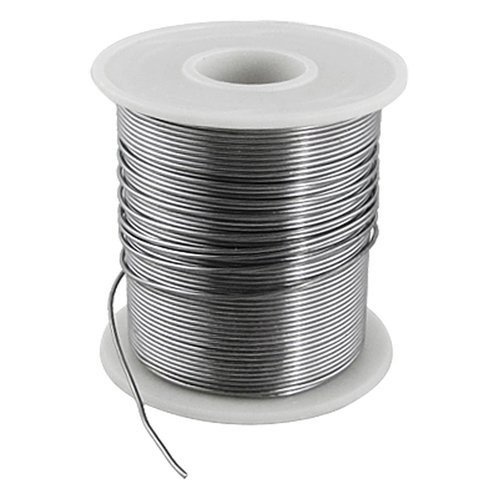

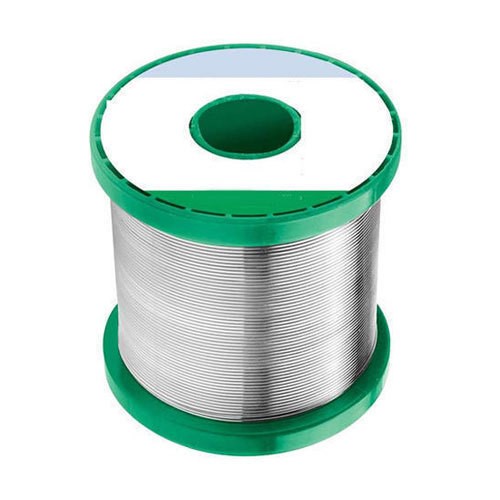

The solder wires may be solid or flux cored. Wire Diameter: from 0,3 to 5 mm.
|
Lead free Alloy |
||
|
Alloy |
Melting point (°C) |
|
|
Solidus |
Liquidus |
|
|
Sn95,5Ag3,8Cu0,7 (SAC 387) |
217 |
Eutectoid |
|
Sn96,5Ag3Cu0,5 (SAC 305) |
217 |
220 |
|
Sn99Ag0,3Cu0,7 (SAC 0307) |
217 |
227 |
|
Sn96,5Ag3,5 |
221 |
Eutectoid |
|
Sn100 |
232 |
Eutectoid |
|
Sn97Cu3 |
227 |
310 |
|
Sn99,3Cu0,7 |
227 |
Eutectoid |
|
Sn99CuSP |
227 |
Eutectoid |
|
Lead Alloy |
||
|
Alloy |
Melting point (°C) |
|
|
Solidus |
Liquidus |
|
|
Sn63Pb37 |
183 |
Eutectoid |
|
Sn60Pb40 |
183 |
190 |
|
Sn50Pb50 |
183 |
215 |
|
Sn40Pb60 |
183 |
238 |
|
Pb70Sn30 |
183 |
255 |
|
Pb90Sn10 |
268 |
302 |
|
Pb93,5Sn5Ag1,5 |
296 |
301 |
|
Other on request |
||
Applications
- RoHS Lead free Solders
- Soft soldering on (PCBs)
- To repair jewelry and musical instruments and many more
|
Available flux (J-STD-004 classification) |
|
|
Classification |
MTL Cored flux |
|
ROL0 |
R45*, A0*, R1*, RT15*, FXN*, EL, Ri |
|
ROL1 |
CT2, ROB* |
|
ROM1 |
A11*, CR, RD, RJ10, CMA, RL |
|
REL0 |
S45V*, LSO* |
|
ORL0 |
HY0, JARY, ORG, ORG H |
|
ORM1 |
HC1, HC2 |
|
INH1 |
HC3 |
|
|
*=NO CLEAN Flux |
|
ROB: |
Flux dedicated to robot application |
